You must apply an epoxy floor coating at proper thickness to ensure durability without incurring unnecessary costs. If the coating is too thin, the floors may be prone to quick damage, while excessively thick coatings would result in additional expenses.

How to determine the right epoxy flooring thickness for each environment depends on the type of activity floor is being used for. Contacting Us at (416) 881-8105 or fill out our free quote form for a personalized assessment and cost estimate.

Typical Epoxy Floor Thickness

The epoxy can range in thickness from 0.01 inches to 0.25 inches. Thinner coatings, known as “thin films,” are more suitable for decorative purposes than for providing strong protection to the underlying surface. However, the standard thickness for a full epoxy coating system is not specified.

High Impact Epoxy Mortar Resurfacing Trowel System

Epoxy mortar Trowel System is a solid colour, high gloss, resin-rich, aggregate-filled, seamless, epoxy-based floor resurfacer with high density and compressive strength for exceptional durability. Typically installed to protect new concrete or re-profile existing worn floors at a thickness range of 3 – 6 mm (1/8 – 1/4 in). This heavy-duty, general-service epoxy system demonstrates good chemical resistance and superior abrasion and impact resistance. Epoxy mortar Trowel System can be customized to meet aesthetic and slope correction requirements. Final surface appearance options include unlimited colour selection, integral cove base, gloss, satin or matte surface sheen and variable surface texture to produce a range of slip-resistant improved traction finishes.

Where to use:

Animal care facilities.

 Beverage processing.

 Commercial kitchens- wet and dry processing areas.

 Factories-light to heavy-duty manufacturing areas.

 Health care facilities.

 High-traffic aisles.

 Laboratories.

 Locker and shower rooms.

 Production lines.

 Garbage rooms.

 Garage service bays.

 Wash bays.

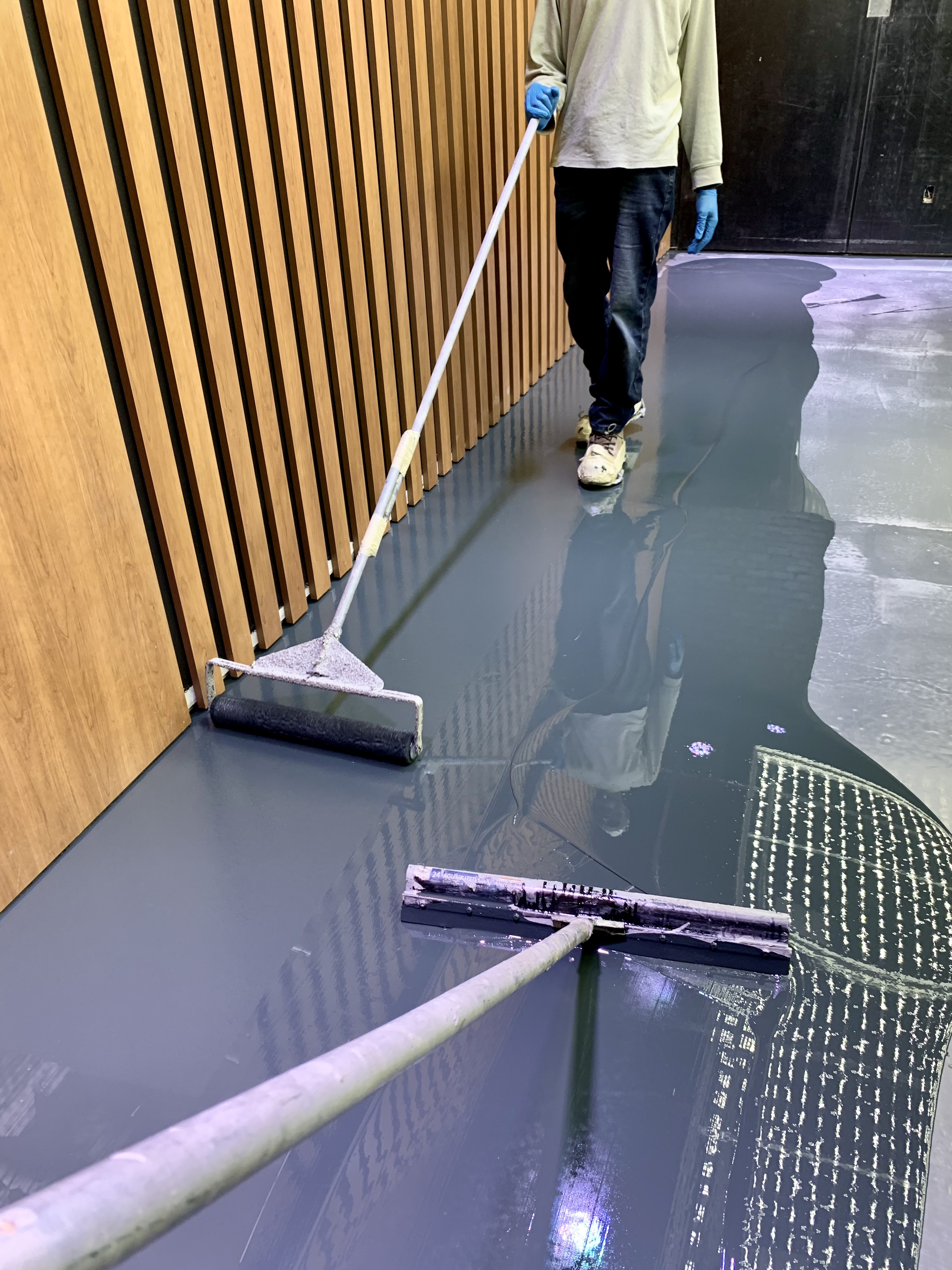

SELF-LEVELLING/BROADCAST OF 3 – 6 MM (1/8 – 1/4 IN)

Self-Levelling Broadcast System is a solid colour, high gloss, textured, resin-rich, aggregate extended, seamless, epoxy-based floor coating. The incorporation of durable, fine aggregate into the matrix during mixing significantly increases the liquid resin volume during application without sacrificing physical properties. This reduces the overall
neat resin cost associated with thicker self-levelling coatings and maximizes resin economy allowing thicker applications that ultimately extend the coatings service life against aggressive wear. Additional selected aggregate (selected for texture) is broadcast on to the wet resin during application to produce an aggregate surface texture with improved scratch resistance. Typically installed in medium to heavy-duty traffic areas, this general service epoxy coating demonstrates good chemical resistance as well as high abrasion and impact resistance. Final surface appearance options include unlimited colour selection, integral cove base, gloss, satin or matte surface sheen and variable surface texture to produce a range of slip-resistant improved traction finishes.

Where do use:

Beverage processing areas.

Cafeterias.

 Dairies.

 Garbage rooms.

Self-Levelling/Broadcast Surfacing

 Laundry rooms.

 Heavy-duty manufacturing areas.

 Meat, fish & poultry packaging areas.  Photo processing & printing shops.

 Traffic aisles.
